Enter a number directly or adjust it with stepper buttons, within a chosen range.
import Syidax.Core.InputNumber
| Type | Definition / role |
|---|---|
| Numeric field with step controls, range limits and validation. |
Previews are images of native Qt runs. Use the buttons below each image to view a result.
SyInputNumber is the numeric field: the input's title, box and message lines around a number with a ▲▼ stepper column at the right.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
property QtObject settings: QtObject {
id: storyArgs
property string label: "Quantity"
property real value: 1
property real min: 0
property real max: 100
property real step: 1
property int decimalPlaces: -1
property string rounding: "round"
property string size: "medium"
property string status: "default"
property bool required: false
property bool disabled: false
property bool readonly: false
property bool borderless: false
property string message: ""
}
SyInputNumber {
label: storyArgs.label
value: storyArgs.value
min: storyArgs.min
max: storyArgs.max
step: storyArgs.step
decimalPlaces: storyArgs.decimalPlaces
rounding: storyArgs.rounding
size: storyArgs.size
status: storyArgs.status
required: storyArgs.required
disabled: storyArgs.disabled
readonly: storyArgs.readonly
borderless: storyArgs.borderless
message: storyArgs.message
onValueChanged: if (typeof value === "number" && storyArgs.value !== value) storyArgs.value = value
}
}min, max and step bound the stepping and define the checks.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
property QtObject settings: QtObject {
id: storyArgs
property real min: 0
property real max: 10
property real step: 2
}
SyInputNumber { id: featureTarget0; label: "Quantity"; value: 4; min: storyArgs.min; max: storyArgs.max; step: storyArgs.step }
}decimalPlaces and rounding format the number when the user leaves the field and whenever it is stepped — never while typing.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
property QtObject settings: QtObject {
id: storyArgs
property int decimalPlaces: 2
property string rounding: "round"
}
SyInputNumber { id: featureTarget0; label: "Price"; value: 19.999; step: 0.05; decimalPlaces: storyArgs.decimalPlaces; rounding: storyArgs.rounding }
}size sets the box height and text scale like the input (24 · 32 · 40 px).
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Column {
spacing: 12
SyInputNumber { id: featureTarget0; visible: true; value: 1; size: "small" }
SyInputNumber { id: featureTarget1; visible: true; value: 1; size: "large" }
SyInputNumber { id: featureTarget2; visible: true; value: 1; disabled: true }
SyInputNumber { id: featureTarget3; visible: true; value: 1; readonly: true }
SyInputNumber { id: featureTarget4; visible: true; value: 1; status: "error" }
}

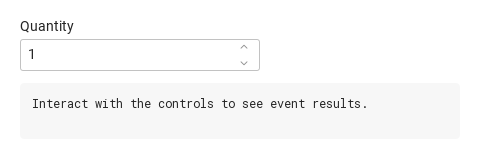

}The field has three signals: changed(detail) whenever value changes after the field has loaded
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Column {
spacing: 12
SyInputNumber {
label: "Quantity"; value: 1; min: 0; max: 5
onChanged: (detail) => { if (true) { output.log(("changed: %1 (valid: %2)").arg(detail.value).arg(detail.isValid)) } }
onFocused: (detail) => { if (true) { output.log("focused") } }
onBlured: (detail) => { if (true) { output.log(("blured: status %1").arg(detail.status)) } }
}
EventLog { id: output }
}

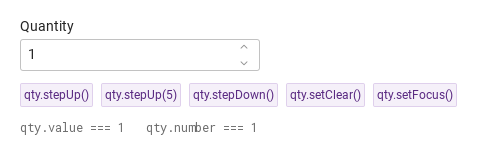

}The number field adds three functions to the shared ones:
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Column {
spacing: 12
SyInputNumber { id: qty; label: "Quantity"; value: 1; min: 0; max: 20 }
Flow {
width: 560
spacing: 8
SyButton { id: exampleControl1; visible: true; text: "qty.stepUp()"; variant: "secondary"; size: "small"; onClicked: qty.stepUp() }
SyButton { id: exampleControl2; visible: true; text: "qty.stepUp(5)"; variant: "secondary"; size: "small"; onClicked: qty.stepUp(5) }
SyButton { id: exampleControl3; visible: true; text: "qty.stepDown()"; variant: "secondary"; size: "small"; onClicked: qty.stepDown() }
SyButton { visible: true; text: "qty.setClear()"; variant: "secondary"; size: "small"; onClicked: qty.setClear() }
SyButton { visible: true; text: "qty.setFocus()"; variant: "secondary"; size: "small"; onClicked: qty.setFocus() }
}
Text {
text: "qty.value === " + JSON.stringify(qty.value) + " qty.number === " + JSON.stringify(qty.number)
font.family: Theme.monoFontFamily
font.pixelSize: 12
color: Theme.semantic.textSubtle
}
}
}Decimal precision, configured with value, decimalPlaces, step.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
property QtObject settings: QtObject {
id: storyArgs
property string label: "Quantity"
property real value: 12.345
property real min: 0
property real max: 100
property real step: 0.01
property int decimalPlaces: 2
property string rounding: "round"
property string size: "medium"
property string status: "default"
property bool required: false
property bool disabled: false
property bool readonly: false
property bool borderless: false
property string message: ""
}
SyInputNumber {
label: storyArgs.label
value: storyArgs.value
min: storyArgs.min
max: storyArgs.max
step: storyArgs.step
decimalPlaces: storyArgs.decimalPlaces
rounding: storyArgs.rounding
size: storyArgs.size
status: storyArgs.status
required: storyArgs.required
disabled: storyArgs.disabled
readonly: storyArgs.readonly
borderless: storyArgs.borderless
message: storyArgs.message
onValueChanged: if (typeof value === "number" && storyArgs.value !== value) storyArgs.value = value
}
}Bounded quantity, configured with min, max, step, value.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
property QtObject settings: QtObject {
id: storyArgs
property string label: "Quantity"
property real value: 6
property real min: 2
property real max: 20
property real step: 2
property int decimalPlaces: -1
property string rounding: "round"
property string size: "medium"
property string status: "default"
property bool required: false
property bool disabled: false
property bool readonly: false
property bool borderless: false
property string message: ""
}
SyInputNumber {
label: storyArgs.label
value: storyArgs.value
min: storyArgs.min
max: storyArgs.max
step: storyArgs.step
decimalPlaces: storyArgs.decimalPlaces
rounding: storyArgs.rounding
size: storyArgs.size
status: storyArgs.status
required: storyArgs.required
disabled: storyArgs.disabled
readonly: storyArgs.readonly
borderless: storyArgs.borderless
message: storyArgs.message
onValueChanged: if (typeof value === "number" && storyArgs.value !== value) storyArgs.value = value
}

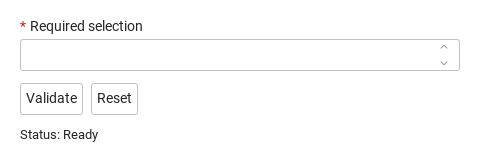

}Compare the untouched field, validation error and reset result.
import QtQuick
import Syidax.Core
Column {
width: 440; spacing: 12
SyInputNumber {
id: field; width: parent.width; name: "selection"; required: true
label: "Required selection"; min: 1; max: 20
error: "Complete this field before continuing."
}
Row {
spacing: 8
SyButton { id: check; text: "Validate"; onClicked: field.reportValidity() }
SyButton { id: reset; text: "Reset"; onClicked: field.reset() }
}
Text { text: "Status: " + (field.invalid ? "Invalid" : "Ready"); color: Theme.semantic.textDefault }

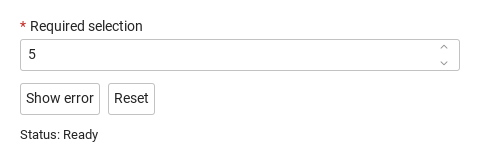

}Show an application-specific error, then reset the field.
import QtQuick
import Syidax.Core
Column {
width: 440; spacing: 12
SyInputNumber {
id: field; width: parent.width; name: "selection"; required: true
label: "Required selection"; min: 1; max: 20
value: 5
error: "This selection is currently unavailable. Choose another."
}
Row {
spacing: 8
SyButton { id: check; text: "Show error"; onClicked: field.setCustomError() }
SyButton { id: reset; text: "Reset"; onClicked: field.reset() }
}
Text { text: "Status: " + (field.invalid ? "Invalid" : "Ready"); color: Theme.semantic.textDefault }
}Hover or select an item for its QML example and copy button.
| Item | Behavior / conditions |
|---|---|
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. | |
The shared field properties (name, label, required, disabled, size, message, error, touched, submitted, customError, validStatus, valid, invalid, preferredWidth, showTitle, ready) are described on the Form page; the ones below are the number field's own or have number-specific meaning. |
| Property | Type | Default | Description |
|---|---|---|---|
| number | string | "" | The number; "" while empty; the raw text while it is not a number (→ typeMismatch). Assignments emit changed. | |
| real | -9007199254740991 | Lower bound: stepping stops there, a typed value below it is rangeUnderflow, and the step grid starts here when set. | |
| real | 9007199254740991 | Upper bound: stepping stops there, a typed value above it is rangeOverflow. | |
| real | 1 | The amount one step adds; also the grid for stepMismatch. Decimal steps are fine. | |
| int | -1 | Digits kept after the point when formatting (blur / step); -1 = as many as step or the value need. | |
| string | "" | round (the default, also for "") · ceil · floor — how extra digits are dropped when formatting. | |
| string | "" | Shown while the field is empty. | |
| string | "" | Title above the box | |
| string | "" | helper line | |
| string | "" | custom error copy | |
| string | "" | key in the owning SyForm. | |
| string | "medium" | small 24 · medium 32 · large 40 px high. | |
| string | "default" | default · warning · error · success — a tone independent of validation. | |
| bool | false | Empty field → valueMissing; adds the * mark. | |
| bool | false | Inert, always valid, not submitted; steppers off. | |
| bool | false | Focusable and selectable, no typing or stepping; always valid; still submitted. | |
| bool | false | No border until the box is focused or invalid. | |
| bool | false | Focus the box as soon as the field is created. | |
| list of Item | — | Items before the text | |
| list of Item | — | after it (before the stepper column). | |
| number | null (read-only) | — | The parsed value, null while empty or not a number. | |
| bool (read-only) | — | The field is empty (value is ""). | |
| bool (read-only) | — | Whether a step in that direction is possible right now (enabled, not read-only, not at the limit). | |
| bool (read-only) | — | Whether a step in that direction is possible right now (enabled, not read-only, not at the limit). | |
| bool (read-only) | — | The box has active focus | |
| bool (read-only) | — | the pointer is over it. | |
| read-only | — | Whether the border is visible, and the current tone. | |
| read-only | — | Whether the border is visible, and the current tone. |
| Method | Description |
|---|---|
value + n × step (n defaults to 1), clamped to max, formatted. Ignored while disabled, read-only or already at max. From an empty field it steps from 0. | |
value − n × step, clamped to min, formatted. Same preconditions, with min. | |
Empties the field: value = "", box cleared, changed with value: null. Works while read-only or disabled. | |
Focus / unfocus the box; the blur formats the number and sets touched. | |
Focus / unfocus the box; the blur formats the number and sets touched. | |
true when the status is ""; shows nothing. | |
| Same verdict, and the error line shows from now on. | |
Force / lift the custom status (the error shows at once). | |
Force / lift the custom status (the error shows at once). | |
"" · valueMissing · typeMismatch · rangeUnderflow · rangeOverflow · stepMismatch · custom. | |
| Back to the initial value; touched, reported and custom flags cleared. |
| Signal | Arguments | When |
|---|---|---|
detail: { value: number | null, isValid: bool, status: string } | value changed after load — keystrokes, steps, the blur formatting, setClear(), assignments from code. | |
| same | The box gained active focus. | |
| same | The box lost focus, after the number was formatted and touched was set. |
| Item | Behavior / conditions |
|---|---|
The number; "" while empty; the raw text while it is not a number (→ typeMismatch). Assignments emit changed. | |
The parsed value, null while empty or not a number. | |
The field is empty (value is ""). | |
value changed after load — keystrokes, steps, the blur formatting, setClear(), assignments from code. Not for the initial value. | |
value + n × step (n defaults to 1), clamped to max, formatted. Ignored while disabled, read-only or already at max. From an empty field it steps from 0. | |
value − n × step, clamped to min, formatted. Same preconditions, with min. | |
The amount one step adds; also the grid for stepMismatch. Decimal steps are fine. | |
Lower bound: stepping stops there, a typed value below it is rangeUnderflow, and the step grid starts here when set. | |
Upper bound: stepping stops there, a typed value above it is rangeOverflow. | |
| Inert, always valid, not submitted; steppers off. | |
| Focusable and selectable, no typing or stepping; always valid; still submitted. | |
The ▲ is grayed and inert once number ≥ max, the ▼ once number ≤ min, both while disabled or readonly (canStepUp / canStepDown). | |
The ▲ is grayed and inert once number ≥ max, the ▼ once number ≤ min, both while disabled or readonly (canStepUp / canStepDown). | |
Only while enabled and not read-only, in this order: custom (after setCustomError()); an empty field is valueMissing when required, else valid; text that is not a number is typeMismatch; a number below min is rangeUnderflow, above max rangeOverflow; a number that is not min + k × step (base 0 when min is unset) is stepMismatch — decimals are compared after scaling, so step: 0.05 works. | |
Empty field → valueMissing; adds the * mark. | |
The error line (built-in copy or error) shows once the field is invalid — after a blur (touched) or reportValidity() (submitted); message is hidden meanwhile. | |
The error line (built-in copy or error) shows once the field is invalid — after a blur (touched) or reportValidity() (submitted); message is hidden meanwhile. disabled > readonly > invalid > status (warning · error · success) > focus > hover > enabled. | |
The error line (built-in copy or error) shows once the field is invalid — after a blur (touched) or reportValidity() (submitted); message is hidden meanwhile. Click or Tab focuses the box (focused); leaving it formats the number, sets touched and fires blured. | |
| Same verdict, and the error line shows from now on. | |
The error line (built-in copy or error) shows once the field is invalid — after a blur (touched) or reportValidity() (submitted); message is hidden meanwhile. | |
The error line (built-in copy or error) shows once the field is invalid — after a blur (touched) or reportValidity() (submitted); message is hidden meanwhile. | |
Digits kept after the point when formatting (blur / step); -1 = as many as step or the value need. | |
round (the default, also for "") · ceil · floor — how extra digits are dropped when formatting. | |
default · warning · error · success — a tone independent of validation. | |
disabled > readonly > invalid > status (warning · error · success) > focus > hover > enabled. | |
disabled > readonly > invalid > status (warning · error · success) > focus > hover > enabled. | |
| No border until the box is focused or invalid. | |
| The box gained active focus. | |
The box lost focus, after the number was formatted and touched was set. | |
disabled blocks focus, typing and stepping and the field is skipped by SyForm.values(). | |
240 px wide unless width is set; the box is 24 · 32 · 40 px high by size. | |
small 24 · medium 32 · large 40 px high. | |
Inside the box, left to right: prefix items, the text, suffix items, then the 16 px stepper column (▲ over ▼, each half the height). | |
Inside the box, left to right: prefix items, the text, suffix items, then the 16 px stepper column (▲ over ▼, each half the height). | |
Colors come from Theme.inputNumber and follow Theme.scheme. |
| Item | Behavior / conditions |
|---|---|
| Keyboard: Tab and Shift+Tab enter and leave the field. Hidden and disabled fields are skipped. Escape closes an open picker before continuing. Textarea uses Tab for focus navigation, including inside a modal; it does not insert indentation. |
