Choose a number or numeric range by moving one or two handles along a track.
import Syidax.Core.Slider
| Type | Definition / role |
|---|---|
| Draggable track for selecting a number or numeric range. |
Previews are images of native Qt runs. Use the buttons below each image to view a result.
SySlider is a form field with a rail and a thumb: value moves between min and max on the step grid by click, drag or keyboard.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
property QtObject settings: QtObject {
id: storyArgs
property string label: "Volume"
property real value: 40
property real min: 0
property real max: 100
property real step: 1
property string showTooltip: "default"
property string tooltipPlacement: "top"
property bool reverse: false
property bool hideTrackFill: false
property bool disabled: false
property bool readonly: false
}
SySlider {
width: 320
label: storyArgs.label
value: storyArgs.value
min: storyArgs.min
max: storyArgs.max
step: storyArgs.step
showTooltip: storyArgs.showTooltip
tooltipPlacement: storyArgs.tooltipPlacement
reverse: storyArgs.reverse
hideTrackFill: storyArgs.hideTrackFill
disabled: storyArgs.disabled
readonly: storyArgs.readonly
onValueChanged: if (storyArgs.value !== value) storyArgs.value = value
}

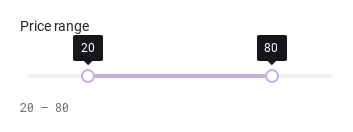

}range: true shows two thumbs.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Column {
spacing: 16
SySlider {
id: price
width: 320
label: "Price range"
range: true; rangeValue: [20, 80]; showTooltip: "always"
}
Text { text: price.lo + " – " + price.hi; font.family: Theme.monoFontFamily; font.pixelSize: 12; color: Theme.semantic.textSubtle }
}
}marks is an object { value: "label" } — write it as ({ 25: "25%" }) in QML.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
property QtObject settings: QtObject {
id: storyArgs
property bool snapToMarks: true
property bool hideMarks: false
}
SySlider { id: featureTarget0;
width: 320
label: "Brightness"
value: 50
marks: ({ 0: "0%", 25: "25%", 50: "50%", 75: "75%", 100: "100%" })
snapToMarks: storyArgs.snapToMarks
hideMarks: storyArgs.hideMarks
}
}showTooltip decides when the value bubble appears next to a thumb: "default" shows it while that thumb is hovered or dragged, "always" keeps it visible, "never" hides it.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
property QtObject settings: QtObject {
id: storyArgs
property string showTooltip: "always"
property string tooltipPlacement: "top"
}
Item {
width: 360
height: 80
SySlider { id: featureTarget0; x: 20; y: 32; width: 320; value: 60; showTooltip: storyArgs.showTooltip; tooltipPlacement: storyArgs.tooltipPlacement }
}

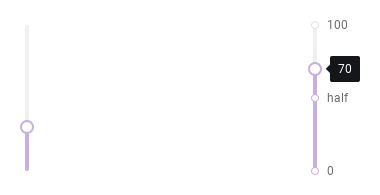

}vertical: true turns the rail upright: min sits at the bottom and the value grows upward (the other way round with reverse).
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Row {
spacing: 48
SySlider { id: featureTarget0; vertical: true; length: 160; value: 30 }
SySlider { id: featureTarget1; vertical: true; length: 160; value: 70; marks: ({ 50: "half" }); showTooltip: "always"; tooltipPlacement: "right" }
}

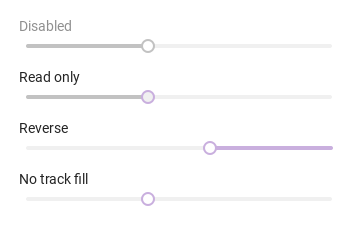

}disabled draws the disabled tones and ignores the pointer and Tab focus; readonly keeps the normal rail but the thumb does not move either, by pointer or by key (the arrows included)
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Column {
spacing: 16
SySlider { label: "Disabled"; id: featureTarget0; visible: true; width: 320; value: 40; disabled: true }
SySlider { label: "Read only"; id: featureTarget1; visible: true; width: 320; value: 40; readonly: true }
SySlider { label: "Reverse"; id: featureTarget2; visible: true; width: 320; value: 40; reverse: true }
SySlider { label: "No track fill"; id: featureTarget3; visible: true; width: 320; value: 40; hideTrackFill: true }
}

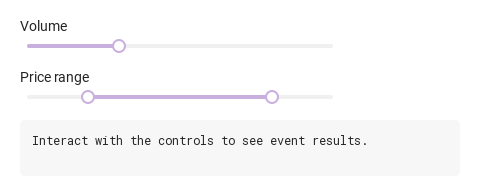

}changed(detail) is the slider's only signal.
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
Column {
spacing: 16
SySlider { id: exampleControl1;
width: 320
label: "Volume"; value: 30; step: 5
onChanged: (detail) => output.log(("value: %1").arg(detail.value))
}
SySlider {
width: 320
label: "Price range"; range: true; rangeValue: [20, 80]
onChanged: (detail) => output.log(("range: %1 – %2").arg(detail.min).arg(detail.max))
}
EventLog { id: output }
}

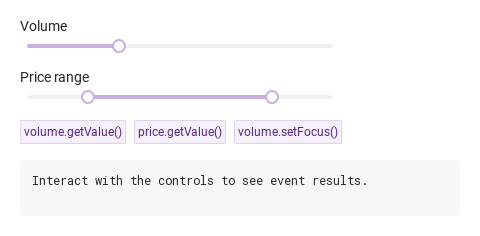

}getValue() returns the current number in single mode — clamped into min … max — or { min, max } in range mode; it is the same value the owning form submits.
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
Column {
spacing: 16
SySlider { id: volume; width: 320; label: "Volume"; value: 30 }
SySlider { id: price; width: 320; label: "Price range"; range: true; rangeValue: [20, 80] }
Row {
spacing: 8
SyButton { id: exampleControl1; text: "volume.getValue()"; variant: "secondary"; size: "small"; onClicked: output.log("getValue() → " + JSON.stringify(volume.getValue())) }
SyButton { id: exampleControl2; text: "price.getValue()"; variant: "secondary"; size: "small"; onClicked: output.log("getValue() → " + JSON.stringify(price.getValue())) }
SyButton { id: exampleControl3; text: "volume.setFocus()"; variant: "secondary"; size: "small"; onClicked: volume.setFocus() }
}
EventLog { id: output }
}
}Hover or select an item for its QML example and copy button.
| Item | Behavior / conditions |
|---|---|
Own properties of SySlider: |
| Property | Type | Default | Description |
|---|---|---|---|
| var (number) | 0 | The value in single mode. Drawn clamped into min … max; user moves snap to step, code assignments do not. Every change after creation emits changed. | |
| real | 0 | The ends of the scale. | |
| real | 100 | The ends of the scale. | |
| real | 1 | The grid user moves snap to (counted from min, rounded to the step's decimals). 0 disables the grid; the keys then move by 1. | |
| bool | false | Two thumbs over rangeValue; changed and getValue() switch to { min, max }; value is ignored. | |
| list | [] | [low, high] for range mode; an empty list means [min, max]. Setting it from code emits changed. | |
| object | ({}) | { value: "label" } — a dot and a label per entry inside the scale; min and max are always labelled. | |
| bool | false | Hides the dots and labels; snapping to marks still works. | |
| bool | false | User moves land on the nearest mark instead of the step grid. | |
| string | "default" | default (while hovered or dragged) · always · never. | |
| string | "top" | top · bottom · left · right of the thumb. | |
| bool | false | The rail runs upward over length px; marks sit to the right. | |
| real | 160 | The rail length when vertical; ignored otherwise (the width rules). | |
| bool | false | max at the left / bottom; the fill runs from the max end. | |
| bool | false | No filled part on the rail. | |
| bool | false | The thumb does not move on user input; normal tones. | |
| string | "single" | Which thumb the keys move: single · min · max. Set automatically by a press; set it to min / max for a range slider driven by keys first. | |
| real (read-only) | — | The clamped low / high values in range mode (min / max otherwise). | |
| real (read-only) | — | The clamped low / high values in range mode (min / max otherwise). | |
| real (read-only) | — | value clamped into the scale. | |
| var (read-only) | — | What the owning form submits: current, or { min, max } in range mode. | |
| bool (read-only) | — | The rail has keyboard focus. | |
| bool (read-only) | — | !disabled && !readonly. |
| Item | Behavior / conditions |
|---|---|
Inherited from the field frame (SyFieldFrame): |
| Property | Type | Default | Description |
|---|---|---|---|
| string | "" | The title above the rail; required adds the asterisk. | |
| string | "" | The key in SyForm.values(). | |
| string | "medium" | Only changes the title's font size here (12 / 14 / 16 px). | |
| bool | false | Disabled tones; the pointer and Tab are ignored; the form skips the field. | |
| bool | false | Draws the asterisk only — the slider is always valid. | |
| string | "" | Helper text under the rail | |
| string | "" | custom error copy (never shown, the slider is always valid). | |
| real | 240 | The width when the app sets none. | |
| bool | true | The title line and the gap between title, rail and message. | |
| real | small spacing | The title line and the gap between title, rail and message. | |
| read-only | — | Always true · false · "" for a slider. | |
| read-only | — | Always true · false · "" for a slider. | |
| read-only | — | Always true · false · "" for a slider. |
| Method | Description |
|---|---|
Returns current (a number) in single mode, { min, max } in range mode. | |
Gives the rail keyboard focus (the keys move activeThumb) | |
| takes it away. | |
Puts value back to the value at creation and clears the touched / submitted flags. rangeValue is not restored. | |
Always return true (no validity rules). | |
Always return true (no validity rules). | |
Always returns "". | |
| Set / clear the custom-error flag; it has no visible effect on a slider. | |
| Set / clear the custom-error flag; it has no visible effect on a slider. |
| Signal | Arguments | When |
|---|---|---|
detail: { value } (single) or { min, max } (range) | Every change of value / rangeValue after creation — pointer, keys or code. Values are clamped. Not for the initial value; user input is blocked while disabled / readonly. | |
detail | Declared by the field base; the slider never emits them. Use hasFocus. | |
detail | Declared by the field base; the slider never emits them. Use hasFocus. |
| Item | Behavior / conditions |
|---|---|
The value in single mode. Drawn clamped into min … max; user moves snap to step, code assignments do not. Every change after creation emits changed. | |
value is drawn clamped into min … max (current is that clamped number). User moves snap to the step grid counted from min and rounded to the decimals of step; a step of 0 disables the grid (free movement, keys move by 1). once the rail has focus (Tab reaches it when interactive, a press gives it, setFocus() too): Left / Down move one step down, Right / Up one step up, PageDown / PageUp ten steps, Home to min, End to max. activeThumb starts as "single", which targets no range thumb — set it to "min" or "max" yourself when a range slider must answer to keys before any click. rangeValue: [low, high] positions the two thumbs; an empty list means [min, max]. changed carries { min, max }; getValue() and the form value are the same object. Entries outside min … max are dropped; min and max always get a dot labelled with their number unless you label them. name keys the value in SyForm.values(): the number in single mode, { min, max } in range mode (formValue). | |
value is drawn clamped into min … max (current is that clamped number). once the rail has focus (Tab reaches it when interactive, a press gives it, setFocus() too): Left / Down move one step down, Right / Up one step up, PageDown / PageUp ten steps, Home to min, End to max. activeThumb starts as "single", which targets no range thumb — set it to "min" or "max" yourself when a range slider must answer to keys before any click. rangeValue: [low, high] positions the two thumbs; an empty list means [min, max]. changed carries { min, max }; getValue() and the form value are the same object. Entries outside min … max are dropped; min and max always get a dot labelled with their number unless you label them. reverse puts max first (left, or bottom when vertical); hideTrackFill removes the filled part between the start (or the low thumb) and the thumb. name keys the value in SyForm.values(): the number in single mode, { min, max } in range mode (formValue). | |
value clamped into the scale. | |
The grid user moves snap to (counted from min, rounded to the step's decimals). 0 disables the grid; the keys then move by 1. | |
Every change of value / rangeValue after creation — pointer, keys or code. Values are clamped. Not for the initial value; user input is blocked while disabled / readonly. | |
a press on the rail jumps the nearest thumb (the only thumb in single mode) to the pointer and focuses the rail; dragging follows the pointer until release. Hovering a thumb shows the tooltip in the "default" mode; hovering the rail switches it to the hover tones. | |
once the rail has focus (Tab reaches it when interactive, a press gives it, setFocus() too): Left / Down move one step down, Right / Up one step up, PageDown / PageUp ten steps, Home to min, End to max. | |
Which thumb the keys move: single · min · max. Set automatically by a press; set it to min / max for a range slider driven by keys first. | |
In range mode the keys move activeThumb: a press sets it to the thumb it moved, and Home / End stop at the other thumb (lo for the high thumb, hi for the low one). lo and hi are the clamped pair at all times. | |
In range mode the keys move activeThumb: a press sets it to the thumb it moved, and Home / End stop at the other thumb (lo for the high thumb, hi for the low one). lo and hi are the clamped pair at all times. A thumb never passes the other: dragging the low thumb past the high one parks it at hi, and vice versa. | |
[low, high] for range mode; an empty list means [min, max]. Setting it from code emits changed. | |
Returns current (a number) in single mode, { min, max } in range mode. | |
| Disabled tones; the pointer and Tab are ignored; the form skips the field. | |
| The thumb does not move on user input; normal tones. | |
focused / blured exist on the field base but the slider does not emit them — read hasFocus. | |
focused / blured exist on the field base but the slider does not emit them — read hasFocus. | |
| The rail has keyboard focus. | |
{ value: "label" } — a dot and a label per entry inside the scale; min and max are always labelled. | |
The title above the rail; required adds the asterisk. | |
| User moves land on the nearest mark instead of the step grid. | |
| Hides the dots and labels; snapping to marks still works. | |
default (while hovered or dragged) · always · never. | |
top · bottom · left · right of the thumb. | |
| The width when the app sets none. | |
Horizontal: the rail spans the field's width — preferredWidth 240 unless the app sets width — and the field is 14 px tall plus 24 px when marks show plus the tooltip inset; the label sits above and message below, like every field. | |
Horizontal: the rail spans the field's width — preferredWidth 240 unless the app sets width — and the field is 14 px tall plus 24 px when marks show plus the tooltip inset; the label sits above and message below, like every field. | |
The rail length when vertical; ignored otherwise (the width rules). | |
max at the left / bottom; the fill runs from the max end. | |
| No filled part on the rail. | |
The key in SyForm.values(). | |
name keys the value in SyForm.values(): the number in single mode, { min, max } in range mode (formValue). | |
What the owning form submits: current, or { min, max } in range mode. | |
The slider has no validity rules: checkValidity() / reportValidity() return true, getStatus() returns "", and required only draws the asterisk in the title. | |
The slider has no validity rules: checkValidity() / reportValidity() return true, getStatus() returns "", and required only draws the asterisk in the title. | |
Always returns "". | |
| Draws the asterisk only — the slider is always valid. |
