Choose one option from a group, using radio controls or connected button segments.
import Syidax.Core.Radio
| Type | Definition / role |
|---|---|
| Standard radio choice used within a SyRadioGroup. | |
| Button-style radio choice used within a SyRadioGroup. | |
| Form field coordinating a single selected value across radio choices. |
Previews are images of native Qt runs. Use the buttons below each image to view a result.
The radio family is three types.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
property QtObject settings: QtObject {
id: storyArgs
property string defaultValue: "pro"
property string position: "horizontal"
property string size: "medium"
property bool disabled: false
property bool readonly: false
property bool required: false
}
SyRadioGroup {
defaultValue: storyArgs.defaultValue
position: storyArgs.position
size: storyArgs.size
disabled: storyArgs.disabled
readonly: storyArgs.readonly
required: storyArgs.required
SyRadio { value: "basic"; text: "Basic" }
SyRadio { value: "pro"; text: "Pro" }
SyRadio { value: "team"; text: "Team" }
}
}position lays the choices out: horizontal (the default) puts them in a row with an 8 px gap, vertical stacks them with a 4 px gap.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
Column {
spacing: 16
SyRadioGroup {
defaultValue: "basic"
SyRadio { value: "basic"; text: "Basic" }
SyRadio { value: "pro"; text: "Pro" }
}
SyRadioGroup {
defaultValue: "basic"; position: "vertical"
SyRadio { value: "basic"; text: "Basic" }
SyRadio { value: "pro"; text: "Pro" }
}
}
}size on the group is pushed into every choice.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
property QtObject settings: QtObject {
id: storyArgs
property string size: "medium"
}
SyRadioGroup {
defaultValue: "pro"; size: storyArgs.size
SyRadio { value: "basic"; text: "Basic" }
SyRadio { value: "pro"; text: "Pro" }
SyRadio { value: "team"; text: "Team" }
}
}SyRadioButton is a choice drawn as a SyButton: declare them inside a SyRadioGroup instead of SyRadios and the group joins them edge to edge into one segmented control
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
property QtObject settings: QtObject {
id: storyArgs
property string variant: "outlined"
property string size: "medium"
property string position: "horizontal"
}
SyRadioGroup { id: featureTarget0;
defaultValue: "week"; variant: storyArgs.variant; size: storyArgs.size; position: storyArgs.position
SyRadioButton { value: "day"; text: "Day" }
SyRadioButton { value: "week"; text: "Week" }
SyRadioButton { value: "month"; text: "Month" }
}
}disabled and readonly on the group are pushed into every choice.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Column {
spacing: 16
SyRadioGroup { id: featureTarget0; visible: true;
defaultValue: "pro"; disabled: true
SyRadio { value: "basic"; text: "Basic" }
SyRadio { value: "pro"; text: "Pro" }
}
SyRadioGroup { id: featureTarget1; visible: true;
defaultValue: "pro"; readonly: true
SyRadio { value: "basic"; text: "Basic" }
SyRadio { value: "pro"; text: "Pro" }
}
SyRadioGroup {
defaultValue: "basic"
SyRadio { value: "basic"; text: "Basic" }
SyRadio { value: "pro"; text: "Pro" }
SyRadio { id: featureTarget2; value: "team"; text: "Team"; disabled: true }
}
}

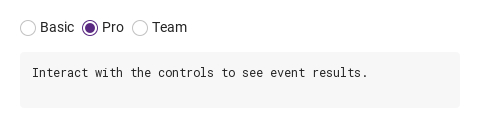

}The group emits changed(detail) whenever its value changes after it has loaded
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Column {
spacing: 12
SyRadioGroup {
defaultValue: "pro"
onChanged: (detail) => { if (true) { output.log(("changed: %1").arg(detail.value)) } }
SyRadio { value: "basic"; text: "Basic" }
SyRadio { value: "pro"; text: "Pro" }
SyRadio { value: "team"; text: "Team"; onSelected: (value) => { if (true) { output.log(("selected: %1").arg(value)) } } }
}
EventLog { id: output }
}

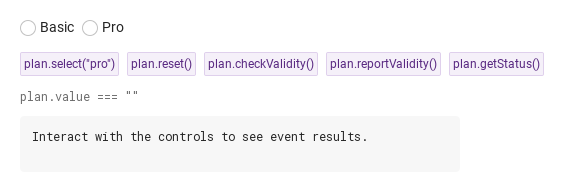

}The group's functions, shown by the buttons in the demo (a required two-choice group):
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Column {
spacing: 12
SyRadioGroup {
id: plan
required: true
SyRadio { value: "basic"; text: "Basic" }
SyRadio { value: "pro"; text: "Pro" }
}
Flow {
width: 560
spacing: 8
SyButton { id: exampleControl1; visible: true; text: "plan.select(\"pro\")"; variant: "secondary"; size: "small"; onClicked: plan.select("pro") }
SyButton { id: exampleControl2; visible: true; text: "plan.reset()"; variant: "secondary"; size: "small"; onClicked: plan.reset() }
SyButton { id: exampleControl3; visible: true; text: "plan.checkValidity()"; variant: "secondary"; size: "small"; onClicked: output.log("checkValidity() → " + plan.checkValidity()) }
SyButton { visible: true; text: "plan.reportValidity()"; variant: "secondary"; size: "small"; onClicked: output.log("reportValidity() → " + plan.reportValidity()) }
SyButton { visible: true; text: "plan.getStatus()"; variant: "secondary"; size: "small"; onClicked: output.log("getStatus() → " + JSON.stringify(plan.getStatus())) }
}
Text {
text: "plan.value === " + JSON.stringify(plan.value)
font.family: Theme.monoFontFamily
font.pixelSize: 12
color: Theme.semantic.textSubtle
}
EventLog { id: output }
}
}Vertical plan choices, configured with position, defaultValue.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
property QtObject settings: QtObject {
id: storyArgs
property string defaultValue: "pro"
property string position: "vertical"
property string size: "medium"
property bool disabled: false
property bool readonly: false
property bool required: false
}
SyRadioGroup {
defaultValue: storyArgs.defaultValue
position: storyArgs.position
size: storyArgs.size
disabled: storyArgs.disabled
readonly: storyArgs.readonly
required: storyArgs.required
SyRadio { value: "basic"; text: "Basic" }
SyRadio { value: "pro"; text: "Pro" }
SyRadio { value: "team"; text: "Team" }
}
}Compare the untouched field, validation error and reset result.
import QtQuick
import Syidax.Core
Column {
width: 440; spacing: 12
SyRadioGroup {
id: field; width: parent.width; name: "selection"; required: true
SyRadio { text: "Standard"; value: "standard" }
SyRadio { text: "Plus"; value: "plus" }
error: "Complete this field before continuing."
}
Row {
spacing: 8
SyButton { id: check; text: "Validate"; onClicked: field.reportValidity() }
SyButton { id: reset; text: "Reset"; onClicked: field.reset() }
}
Text { text: "Status: " + (field.invalid ? "Invalid" : "Ready"); color: Theme.semantic.textDefault }
}Show an application-specific error, then reset the field.
import QtQuick
import Syidax.Core
Column {
width: 440; spacing: 12
SyRadioGroup {
id: field; width: parent.width; name: "selection"; required: true
SyRadio { text: "Standard"; value: "standard" }
SyRadio { text: "Plus"; value: "plus" }
defaultValue: "standard"
error: "This selection is currently unavailable. Choose another."
}
Row {
spacing: 8
SyButton { id: check; text: "Show error"; onClicked: field.setCustomError() }
SyButton { id: reset; text: "Reset"; onClicked: field.reset() }
}
Text { text: "Status: " + (field.invalid ? "Invalid" : "Ready"); color: Theme.semantic.textDefault }
}Hover or select an item for its QML example and copy button.
| Item | Behavior / conditions |
|---|---|
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. | |
The shared field properties (name, label, required, disabled, message, error, touched, submitted, customError, validStatus, valid, invalid, showTitle, ready) are described on the Form page. |
| Property | Type | Default | Description |
|---|---|---|---|
| string | defaultValue | The selected choice's value; "" when nothing is selected. | |
| string | "" | The initial selection and what reset() returns to. | |
| string | "horizontal" | horizontal (row, 8 px gap) · vertical (column, 4 px gap). Segments join with no gap either way. | |
| string | "outlined" | Look of the checked SyRadioButton segment: outlined (secondary) · solid (primary). Pushed as the segments' appearance; ignored by circles. | |
| string | "medium" | Pushed into every choice: circle 14 · 16 · 18 px with 12 · 14 · 16 px text; segment 24 · 32 · 40 px. | |
| bool | false | No selection → valueMissing; adds the * mark to label. | |
| bool | false | Every choice inert and grayed; always valid; not submitted. | |
| bool | false | Selection shown but unchangeable; choices focusable; always valid; still submitted. | |
| string | "" | Form key | |
| string | "" | title above the group | |
| string | "" | helper line | |
| string | "" | custom error copy. | |
| list (read-only) | — | The choices declared inside, in order. | |
| bool (read-only) | — | True when the first choice is a SyRadioButton. | |
| real (read-only) | — | The gap in use: 0 for segments, 4 vertical, 8 horizontal. | |
| Item… | — | Default property: the choices. Direct children only. |
| Property | Type | Default | Description |
|---|---|---|---|
| string | "" | What the group's value becomes when this choice is selected. | |
| string | "" | The label beside the circle; clicking it selects too. | |
| Item… | — | Default property: items declared inside go after the label text. | |
| bool | false | Whether this is the selected choice. Written by the group; outside a group a click sets it. | |
| bool | false | This choice only: grayed, inert, skipped by Tab and the arrow keys. | |
| bool | false | This choice only: shown but its click and Space do nothing, and an arrow-key move from a sibling skips it. | |
| string | "medium" | Circle and text scale; overwritten by the group's size. | |
| bool | false | Written by the group; combined with the choice's own flags into effectiveDisabled / effectiveReadonly. | |
| bool | false | Written by the group; combined with the choice's own flags into effectiveDisabled / effectiveReadonly. | |
| read-only | — | The combined state, the focus, the hover and the current tone. | |
| read-only | — | The combined state, the focus, the hover and the current tone. | |
| read-only | — | The combined state, the focus, the hover and the current tone. | |
| read-only | — | The combined state, the focus, the hover and the current tone. | |
| read-only | — | The combined state, the focus, the hover and the current tone. | |
| real (read-only) | — | 14 · 16 · 18 and 12 · 14 · 16 by size. | |
| real (read-only) | — | 14 · 16 · 18 and 12 · 14 · 16 by size. |
| Item | Behavior / conditions |
|---|---|
A SyButton — every button property (text, icon.source, iconOnly, tooltip, loading, fullWidth, size) is available — plus: | |
A SyButton — every button property (text, icon.source, iconOnly, tooltip, loading, fullWidth, size) is available — plus: | |
A SyButton — every button property (text, icon.source, iconOnly, tooltip, loading, fullWidth, size) is available — plus: | |
A SyButton — every button property (text, icon.source, iconOnly, tooltip, loading, fullWidth, size) is available — plus: | |
A SyButton — every button property (text, icon.source, iconOnly, tooltip, loading, fullWidth, size) is available — plus: | |
A SyButton — every button property (text, icon.source, iconOnly, tooltip, loading, fullWidth, size) is available — plus: | |
A SyButton — every button property (text, icon.source, iconOnly, tooltip, loading, fullWidth, size) is available — plus: |
| Property | Type | Default | Description |
|---|---|---|---|
| string | "" | What the group's value becomes when this segment is selected. | |
| bool | false | Whether this is the selected segment (the button's checked, written by the group). | |
| string | "outlined" | Look when checked: outlined → secondary, solid → primary. Written by the group from its variant. | |
| string | bound | Bound to the state (default · secondary · primary); do not set it yourself. | |
| bool | false | This segment only. The group has the readonly (there is no per-segment readonly). | |
| bool | false | Written by the group. | |
| bool | false | Written by the group. | |
| — | — | Written by the group for the joined corners (see SyButton). | |
| — | — | Written by the group for the joined corners (see SyButton). | |
| bool (read-only) | — | Own disabled or the group's. |
| Method | Description |
|---|---|
Select from code: marks the group touched and sets value (changed fires). Ignored while disabled or readonly. An unknown value unchecks every choice. | |
value back to defaultValue; touched, reported and custom flags cleared. | |
| Focus the checked choice, or the first one. | |
| Remove the focus from every choice. | |
true unless required with no selection (or a custom error). Silent. | |
| Same verdict, and the error line shows from now on. | |
"" · valueMissing · custom. | |
Force / lift the custom status; the error shows at once. | |
Force / lift the custom status; the error shows at once. |
| Method | Description |
|---|---|
The click: emits selected(value) and, outside a group, checks the choice. Ignored while disabled or read-only. | |
The SyRadioGroup the choice is declared in, or null. | |
| Move the group's selection to the previous (−1) or next (+1) enabled choice — what the arrow keys call. |
| Signal | Arguments | When |
|---|---|---|
detail: { value: string, isValid: bool, status: string } | The group's value changed after load — click, Space, arrow keys, select(), reset(), assignments. | |
value: string — the choice's own value | The choice was clicked or chosen with Space, before the group updates; also when it was already checked. Not while the choice or its group is disabled or read-only. |
| Item | Behavior / conditions |
|---|---|
SyRadioGroup declares focused / blured as a field but never emits them. | |
SyRadioGroup declares focused / blured as a field but never emits them. | |
SyRadioButton also emits the button's clicked(). |
| Item | Behavior / conditions |
|---|---|
The group collects the SyRadio and SyRadioButton items that are its direct children (a choice wrapped in a Column or a Row is not found) and lays them out itself: in declaration order, each at its implicit size, in a row with an 8 px gap (horizontal) or a column with a 4 px gap (vertical); segments join with no gap and a one-pixel overlap. Hidden choices are skipped. A group is a button group as soon as its first choice is a SyRadioButton — do not mix the two kinds. Choices added or removed later are picked up automatically. | |
What the group's value becomes when this choice is selected. | |
The initial selection and what reset() returns to. | |
| The choice was clicked or chosen with Space, before the group updates; also when it was already checked. Not while the choice or its group is disabled or read-only. | |
The selected choice's value; "" when nothing is selected. Assignable; every change emits changed. | |
The click: emits selected(value) and, outside a group, checks the choice. Ignored while disabled or read-only. | |
The group's value changed after load — click, Space, arrow keys, select(), reset(), assignments. Not for the initial defaultValue, not when the checked choice is clicked again. | |
| Whether this is the selected choice. Written by the group; outside a group a click sets it. | |
On every change the group writes into each choice: checked, groupDisabled and groupReadonly (from its own disabled / readonly), size, and — for segments only — appearance (from variant). | |
On every change the group writes into each choice: checked, groupDisabled and groupReadonly (from its own disabled / readonly), size, and — for segments only — appearance (from variant). | |
| This choice only: grayed, inert, skipped by Tab and the arrow keys. | |
| This choice only: shown but its click and Space do nothing, and an arrow-key move from a sibling skips it. | |
Circle and text scale; overwritten by the group's size. | |
Look when checked: outlined → secondary, solid → primary. Written by the group from its variant. | |
Bound to the state (default · secondary · primary); do not set it yourself. | |
On every change the group writes into each choice: checked, groupDisabled and groupReadonly (from its own disabled / readonly), size, and — for segments only — appearance (from variant). A size set on one choice is overwritten; a choice's own disabled (and readonly on SyRadio) is respected and combined with the group's. | |
This segment only. The group has the readonly (there is no per-segment readonly). | |
| Every enabled choice is a Tab stop. Space selects the focused choice (on a segment, Space is the button's click). Left / Up move the selection to the previous enabled choice, Right / Down to the next, wrapping at the ends; the arrow keys skip disabled and read-only choices, and the move selects and focuses the new choice at once. Enter does nothing. The focus ring is drawn around the focused circle or segment while it is not disabled. | |
No selection → valueMissing; adds the * mark to label. | |
required with an empty value is valueMissing; the error line under the group ("This field is required", or error) appears once the group is touched (the first click) or reported (reportValidity()), and message is hidden meanwhile. | |
| Same verdict, and the error line shows from now on. | |
required with an empty value is valueMissing; the error line under the group ("This field is required", or error) appears once the group is touched (the first click) or reported (reportValidity()), and message is hidden meanwhile. | |
label draws a title above the group with the required mark. | |
Tones: disabled > readonly > focus > hover > enabled, from Theme.radio. | |
Tones: disabled > readonly > focus > hover > enabled, from Theme.radio. | |
A SyRadio or SyRadioButton outside any group checks itself when clicked and stays checked — there is no way to uncheck it by clicking, and the arrow keys do nothing. Use a group for real exclusive choices. | |
The group is as wide as the row or column of choices (the error and helper lines wrap within that width) unless width is set; a SyRadio row is at least 24 px high, a segment 24 · 32 · 40 px by size. |
